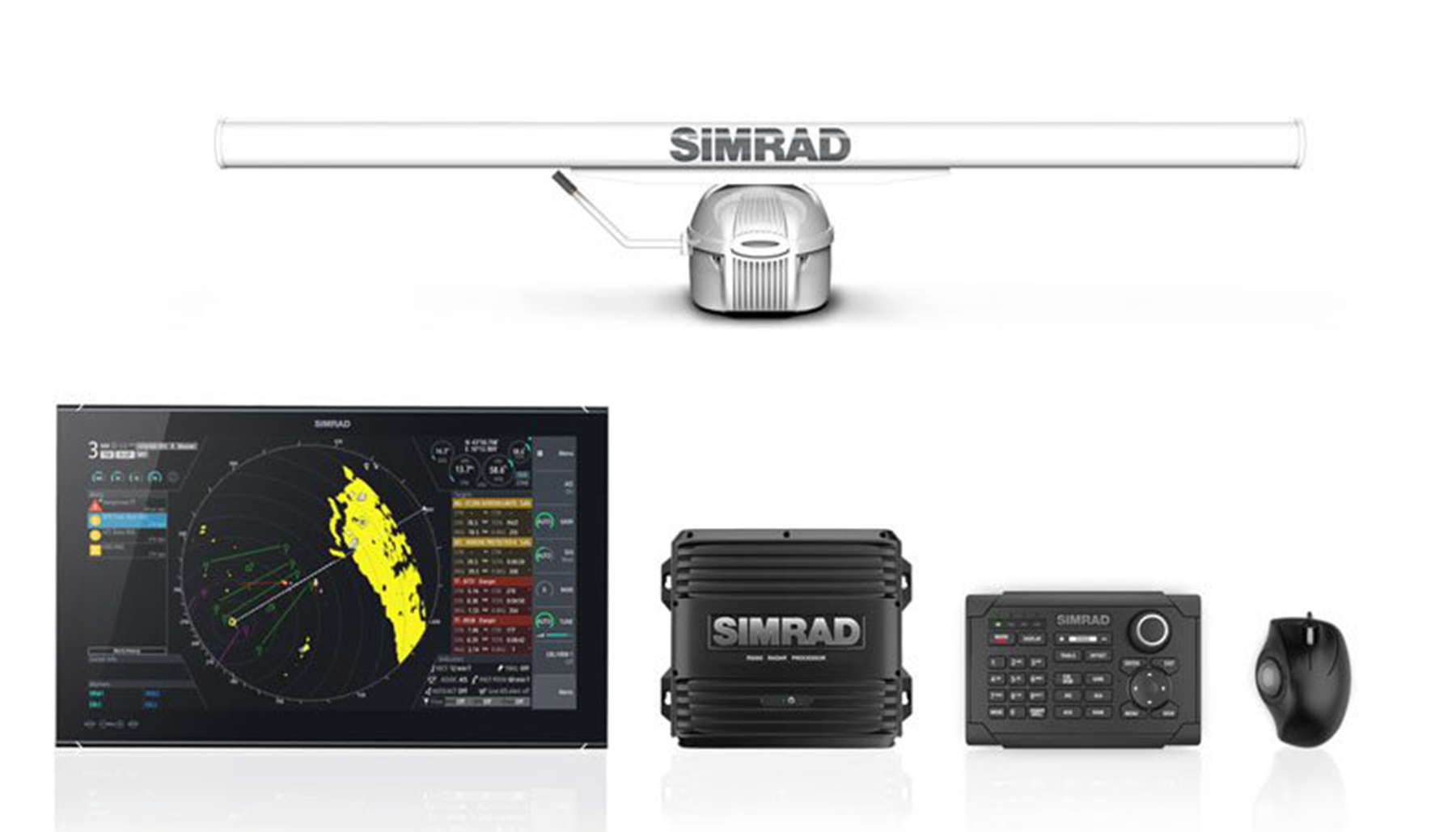

Simrad R5000 radar systems are available in a range of confiurations to meet the requirement for an IMO type-approved X/S-Band radar system aboard CAT 1(H) and CAT 2(H) SOLAS vessels. A modular design makes it easy to create a single or multi-radar system for commercial vessels of any size and type
Easy to Learn and Operate
Our R5000 systems are designed for ease of use, and feature a modern interface with intuitive keypad and trackball controls. Widescreen displays give operators constant access to key information, alerts, and settings without distracting from the central PPI. The same interface is used across our complete series of X-Band and S-Band solutions, offring a consistent experience for operators of multi-radar systems.
Simple and Flexible Installation
Each of our modular systems is based on the R5000 radar processor: a high performance ‘black-box’ system that connects to the radar transceiver via a thin and easy-to-route Ethernet cable. Multiple R5000 processors can be networked together to create multi-radar systems, and to provide access to radar from multiple stations. Any networked station can control any connected radar system, offring both flxibility and redundancy.
Type-Approved X-Band Radar Solutions
X-Band radar delivers high-resolution coverage with optimal target separation. We offr type-approved X-Band radar solutions for use aboard CAT 1 and CAT 2 SOLAS vessels, including high speed craft (HSC). Choose from a 12 or 25 kilowatt up-mast transceiver for simple and cost-effctive installation, or a 25-kilowatt down-mast transceiver for enhanced serviceability and resistance to harsh environmental conditions. Open array antennas are available in 6, 9, and 12- foot diameters to suit a variety of operational requirements and vessel sizes.
Type-Approved S-Band Radar Solutions
S-Band radar serves as a secondary system aboard SOLAS vessels of 3,000 GT and above, and offrs superior target detection to X-Band radar in poor weather conditions such as rain or fog. We offr IMO type-approved S-Band radar solutions for use aboard CAT 1 and CAT 2 vessels, including high speed craft (HSC). A lightweight 12-foot open array antenna is paired with a 30-kilowatt S-Band transceiver; the transceiver is available in an up-mast confiuration for simple
and cost-effctive installation, or down-mast confiuration for enhanced serviceability and resistance to harsh environmental conditions.
